OEM#: CESSWDM3714TNew OEM Original Outright

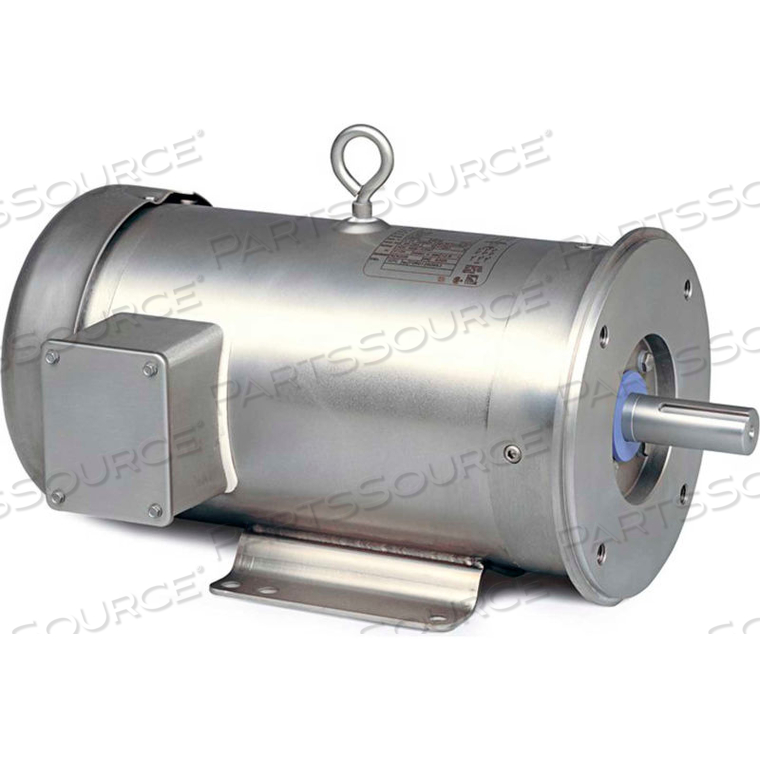

MOTOR, 10HP, 1770RPM, 3PH, 60HZ, 215TC, 3756M, TEFC, F by BALDOR

Your price:
$5,282.75 eachReady to ship
HomeBALDORCESSWDM3714T
MOTOR, 10HP, 1770RPM, 3PH, 60HZ, 215TC, 3756M, TEFC, F by BALDOR
MOTOR, 10HP, 1770RPM, 3PH, 60HZ, 215TC, 3756M, TEFC, F by BALDOR

OEM#: CESSWDM3714T
MOTOR, 10HP, 1770RPM, 3PH, 60HZ, 215TC, 3756M, TEFC, F by BALDOR

New OEM Original Outright
Your price:
$5,282.75 each
Ready to ship
Asset Information
Are you an existing customer? Sign in to access your account.
ADD TO LIST
Product Overview
Baldor-Reliance Motor, 10HP,1770RPM,3PH,60HZ,215TC,3756M,TEFC,F

Features:
  • Stainless steel motor frame, endplates, conduit box, shaft and base
  • Moisture resistant ISR®
  • Four condensate drains in each endplate
  • Endplate rabbets sealed and conduit box gasketed
  • Rotating non-contact labyrinth seals
  • NEMA Premium® efficiency
  • 3 year warranty
Typical Applications:
Food processing, packaging, outdoor and highly corrosive environments

Technical Specs
P/N: CESSWDM3714T Key Specs
Item
MOTOR, 10HP, 1770RPM, 3PH, 60HZ, 215TC, 3756M, TEFC, F
OEM
BALDOR
OEM #
CESSWDM3714T
Condition
New OEM Original
Returnable
No
Warranty
Mfr Warranty
Ambient Temp C
40
Baldor Catalog Number
CESSWDM3714T
Bearing-Opp-Drive-End
6206
C-Dimension Inches
21.66
Country of Origin
USA
Drive End Flange
C-Face
Enclosure
TEFC
Enclosure Type
Totally Enclosed
Fl Amps
25/12.5
Frame
215TC
Hertz
60
Horsepower
10
Is_Motor
Yes
Motor Rpm 60Hz
1770
Mounting
Rigid
Phase
3
Poles
4
Rpm
1770
Rpm Range
1701-1800
Service Factor
1.15
Voltage
230/460
Weight
190
Baldor-Reliance Motor, 10HP,1770RPM,3PH,60HZ,215TC,3756M,TEFC,F

Features:
  • Stainless steel motor frame, endplates, conduit box, shaft and base
  • Moisture resistant ISR®
  • Four condensate drains in each endplate
  • Endplate rabbets sealed and conduit box gasketed
  • Rotating non-contact labyrinth seals
  • NEMA Premium® efficiency
  • 3 year warranty
Typical Applications:
Food processing, packaging, outdoor and highly corrosive environments
