OEM#: CEM4107TNew OEM Original Outright

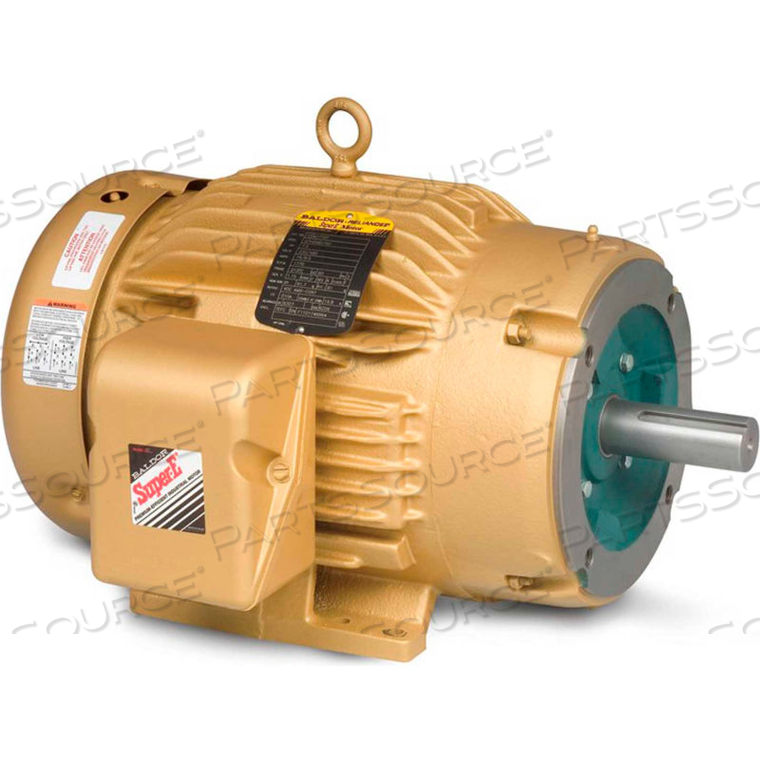

MOTOR, 25HP, 3530RPM, 3PH, 60HZ, 284TSC, 0950M, TEFC by BALDOR
Your price:
$7,783.83 each
OEM#: CEM4107TMOTOR, 25HP, 3530RPM, 3PH, 60HZ, 284TSC, 0950M, TEFC by BALDOR
New OEM Original Outright
Your price:
$7,783.83 each
Asset Information
Are you an existing customer? Sign in to access your account.
ADD TO LIST
Product Overview
Baldor-Reliance Motor, 25HP,3530RPM,3PH,60HZ,284TSC,0950M,TEFC
Features:
Typical applications include operations where continuous or frequent duty is required. Super-E Motors are designed to conserve energy over extended time periods. Class F insulated, 1.15 service factor. Inverter rated per NEMA MG1 Part 31.4.4.2. Suitable for variable torque applications and constant torque speed range with properly sized and adjusted variable frequency drives.
Features:
- Heavy gauge steel and cast iron frames
- Ball bearings
- ISR® (Inverter Spike Resistant®) copper windings
- Low-loss electrical grade lamination steel
- Three year warranty
Typical applications include operations where continuous or frequent duty is required. Super-E Motors are designed to conserve energy over extended time periods. Class F insulated, 1.15 service factor. Inverter rated per NEMA MG1 Part 31.4.4.2. Suitable for variable torque applications and constant torque speed range with properly sized and adjusted variable frequency drives.
Technical Specs
P/N: CEM4107T Key Specs
Item
MOTOR, 25HP, 3530RPM, 3PH, 60HZ, 284TSC, 0950M, TEFC
OEM
BALDOR
OEM #
CEM4107T
Condition
New OEM Original
Returnable
No
Warranty
Mfr Warranty
208V Amps
60
Ambient Temperature (°C)
40
Bearing Drive End
6311
Bearing Opposite Drive End
6208
Country of Origin
USA
Design Code
B
Dimension C (in)
25.25
Doe-Code
010A
Drive End Flange
C-Face
Enclosure
TEFC
Enclosure Type
Totally Enclosed
Frame
284TSC
Full Load Amps
54/27
Full Load Efficiency
91.7
Grease
POLYREX EM
Hertz
60
Horsepower
25
Insulation Class
F
Is Motor
Yes
Motor RPM 60 Hertz
3520
Mounting
Rigid
Nameplate RPM
3520
Phase
3
Poles
2
Power Factor
91
RPM Range
3001-3600
Service Factor
1.15
Spec. Number
09F637Z645G1
Voltage
230/460
Weight
383
kVA-Code
H
