OEM#: CECP82334T-5New OEM Original Outright

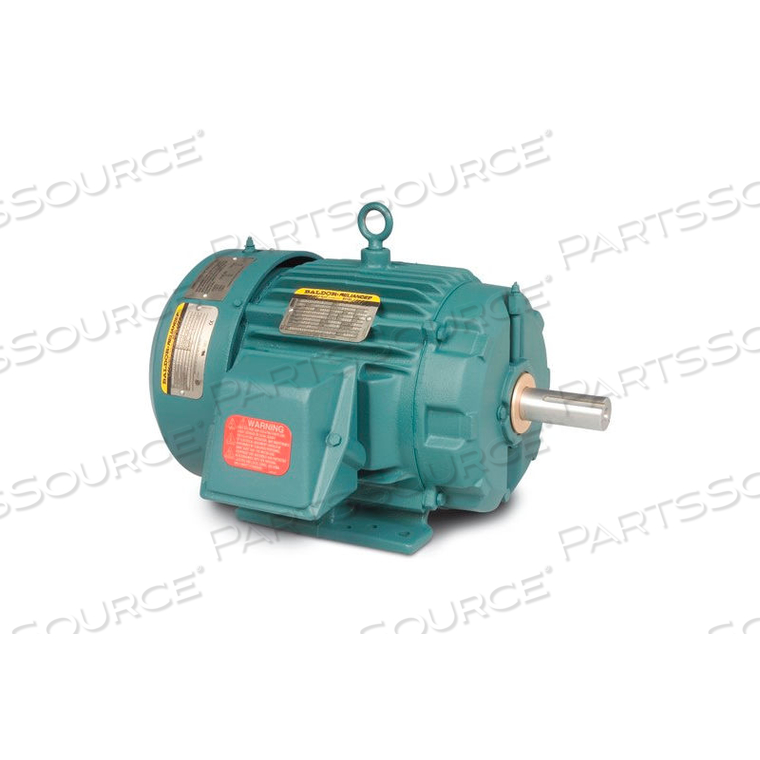

MOTOR, 20HP, 1765RPM, 3PH, 60HZ, 256TC, 0960M, TEFC, F by BALDOR
Your price:
$6,734.37 each
OEM#: CECP82334T-5MOTOR, 20HP, 1765RPM, 3PH, 60HZ, 256TC, 0960M, TEFC, F by BALDOR
New OEM Original Outright
Your price:
$6,734.37 each
Asset Information
Are you an existing customer? Sign in to access your account.
ADD TO LIST
Product Overview
Baldor-Reliance Motor, 20HP,1765RPM,3PH,60HZ,256TC,0960M,TEFC,F
Features:
Typical applications include petro-chemical, pulp and paper plants, mines and other installations requiring premium efficient motors manufactured and tested to rigid standards for severe duty service.
Features:
- Designed and manufactured and tested to exceed the IEEE 841-1994 standards for severe duty TEFC induction motors
- Premium efficiency copper windings using Baldor-Reliance ISR (Inverter Spike Resistant)® magnet wire comply with CEE efficiency guidelines
- Inpro Seal® on fan and drive end shaft extensions
- 2-part yellow epoxy oxide primer (inside & outside)
- Gray epoxy paint and corrosion resistant hardware
- Reduced noise, vibration and mechanical tolerances
- Final test and vibration results shipped with motor
Typical applications include petro-chemical, pulp and paper plants, mines and other installations requiring premium efficient motors manufactured and tested to rigid standards for severe duty service.
Technical Specs
P/N: CECP82334T-5 Key Specs
Item
MOTOR, 20HP, 1765RPM, 3PH, 60HZ, 256TC, 0960M, TEFC, F
OEM
BALDOR
OEM #
CECP82334T-5
Condition
New OEM Original
Returnable
No
Warranty
Mfr Warranty
Ambient Temperature (°C)
40
Bearing Drive End
6309
Country of Origin
USA
Design Code
B
Dimension C (in)
25.19
Drive End Flange
C-Face
Efficiency-2
91.7
Enclosure
TEFC
Enclosure Type
Totally Enclosed
Frame
256TC
Full Load Amps
19
Full Load Efficiency
93
Grease
POLYREX EM
Hertz
60
Horsepower
20
Insulation Class
F
Is Motor
Yes
Maximum kVar
4.3
Motor RPM 60 Hertz
1765
Mounting
Rigid
Number of Rotor Bars
40
Number of Stator Slots
48
Opposite End Bearing
6309
Phase
3
Poles
4
Power Factor
86
RPM
1765
RPM Range
1701-1800
Service Factor
1.15
Spec. Number
09H196Z220
Temperature Code
T3
Voltage
575
Weight (lb)
344
kVA-Code
G
Baldor-Reliance Motor, 20HP,1765RPM,3PH,60HZ,256TC,0960M,TEFC,F
Features:
Typical applications include petro-chemical, pulp and paper plants, mines and other installations requiring premium efficient motors manufactured and tested to rigid standards for severe duty service.
Features:
- Designed and manufactured and tested to exceed the IEEE 841-1994 standards for severe duty TEFC induction motors
- Premium efficiency copper windings using Baldor-Reliance ISR (Inverter Spike Resistant)® magnet wire comply with CEE efficiency guidelines
- Inpro Seal® on fan and drive end shaft extensions
- 2-part yellow epoxy oxide primer (inside & outside)
- Gray epoxy paint and corrosion resistant hardware
- Reduced noise, vibration and mechanical tolerances
- Final test and vibration results shipped with motor
Typical applications include petro-chemical, pulp and paper plants, mines and other installations requiring premium efficient motors manufactured and tested to rigid standards for severe duty service.
