OEM#: FP CHK 693-6F6F-FNew OEM Original Outright

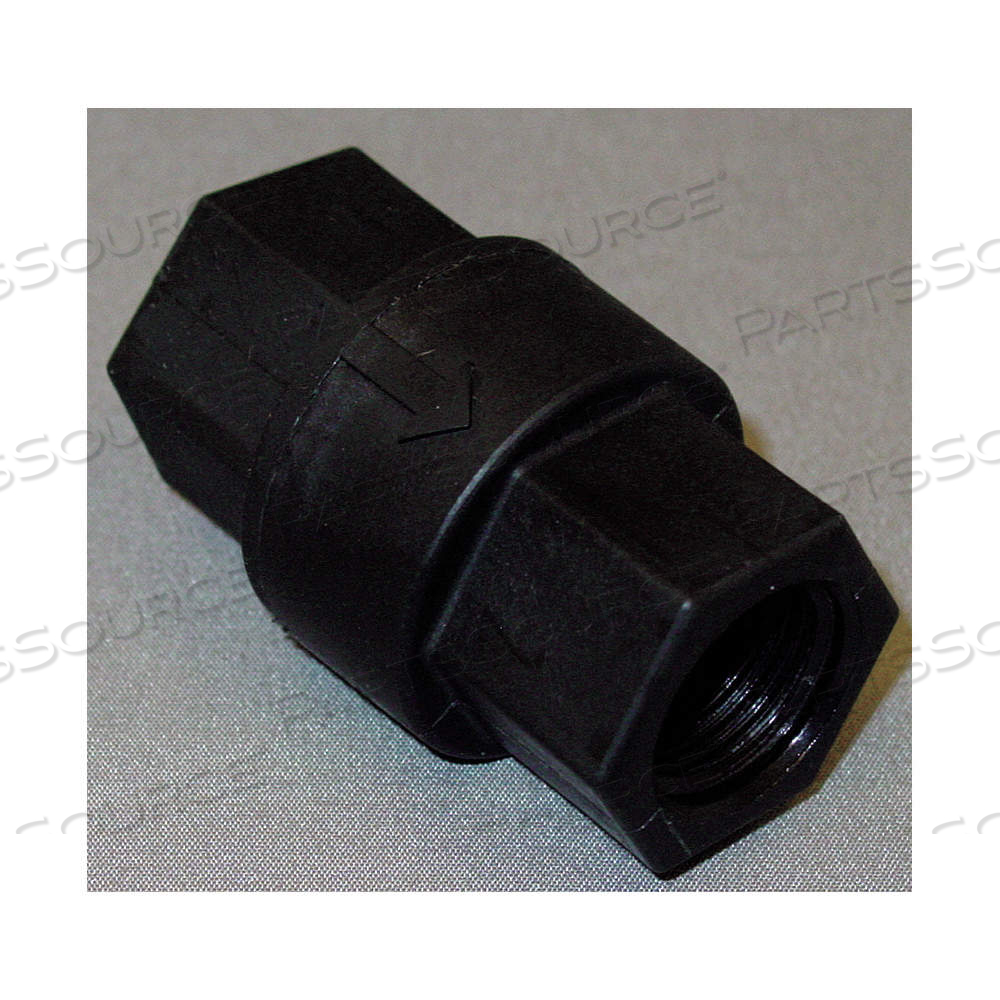

BALL CONE SPRING CHECK VALVE, POPPET, INLINE VALVE BODY, 3/8 IN PIPE SIZE, FEMALE by Approved Vendor
Your price:
$26.38 each
OEM#: FP CHK 693-6F6F-FBALL CONE SPRING CHECK VALVE, POPPET, INLINE VALVE BODY, 3/8 IN PIPE SIZE, FEMALE by Approved Vendor
New OEM Original Outright
Your price:
$26.38 each
Asset Information
Are you an existing customer? Sign in to access your account.
ADD TO LIST
Technical Specs
P/N: FP CHK 693-6F6F-F Key Specs
Item
BALL CONE SPRING CHECK VALVE, POPPET, INLINE VALVE BODY, 3/8 IN PIPE SIZE, FEMALE
OEM
Approved Vendor
OEM #
FP CHK 693-6F6F-F
Condition
New OEM Original
Returnable
No
Warranty
Mfr Warranty
3-A Compliance
Not Rated
Body Material
Polypropylene
Check Mechanism
Poppet
Connection Gender - Side 1
Female
Connection Gender - Side 2
Female
Connection Size - Side 1
3/8 in
Connection Size - Side 2
3/8 in
Connection Type
FNPT x FNPT
Connection Type - Side 1
NPT
Connection Type - Side 2
NPT
Country of Origin
USA
Cracking Pressure
0.33 psi
Flow Coefficient (Cv)
4.2
For Media
Air, Fluids
Hex Size
1 in
Max. Pressure (CWP)
125 psi
Max. Pressure (Steam)
Not Rated
Media Temp. Range
-20 °F to 140 °F
Mounting Orientation
Horizontal , Vertical
Operating Temperature - Maximum
140 °F
Operating Temperature - Minimum
-20 °F
Overall Length
2 in
Pipe Size
3/8 in
Seal Material
FKM
Seat Material
Glass-Filled Polypropylene
Silent Check
Standard
Spring Material
Stainless Steel
Vacuum Service Rating
Not Rated
Valve Body Style
Inline
Valve Series
693
