OEM#: CHK SST 410-4M4F-FNew OEM Original Outright

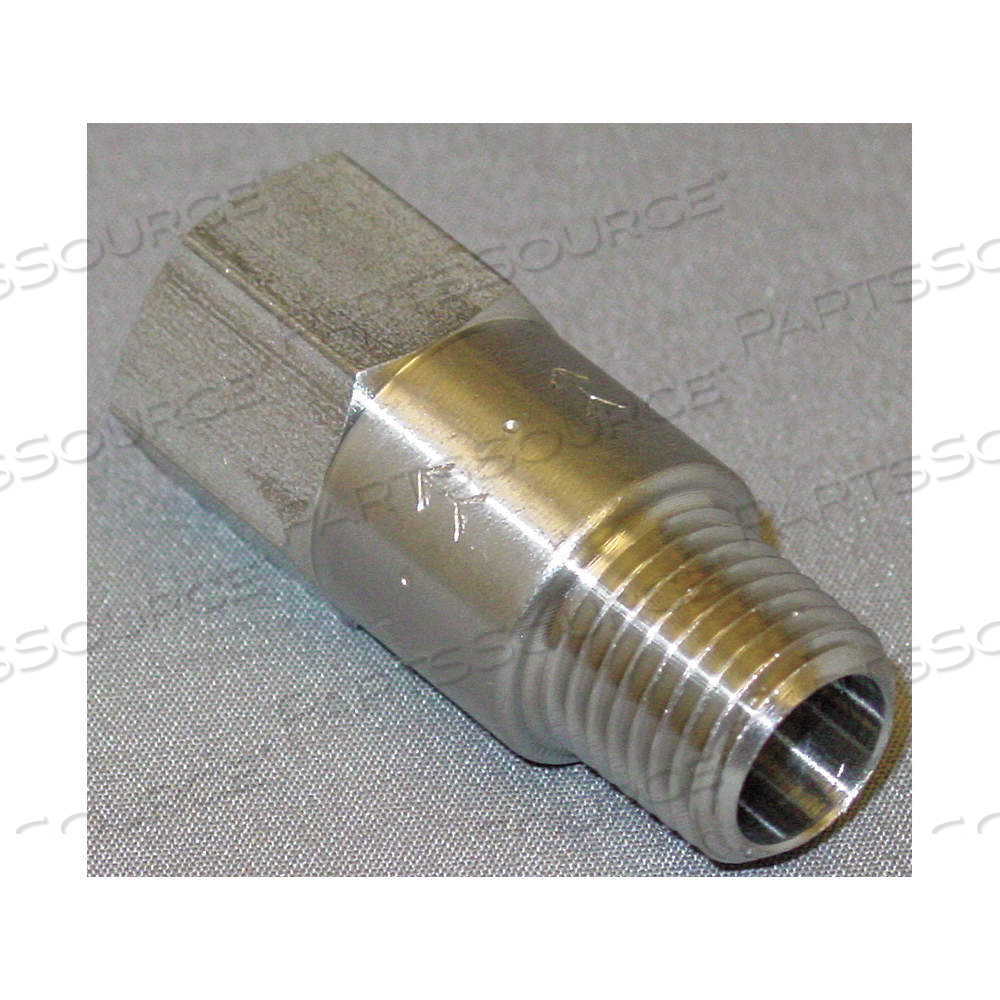

PISTON SPRING CHECK VALVE, PISTON, INLINE VALVE BODY, 1/4 IN PIPE SIZE, MNPT X FNPT by Approved Vendor

Your price:
$67.99 eachReady to ship
HomeApproved VendorGRACHKSST4104M4FF
PISTON SPRING CHECK VALVE, PISTON, INLINE VALVE BODY, 1/4 IN PIPE SIZE, MNPT X FNPT by Approved Vendor
PISTON SPRING CHECK VALVE, PISTON, INLINE VALVE BODY, 1/4 IN PIPE SIZE, MNPT X FNPT by Approved Vendor

OEM#: CHK SST 410-4M4F-F
PISTON SPRING CHECK VALVE, PISTON, INLINE VALVE BODY, 1/4 IN PIPE SIZE, MNPT X FNPT by Approved Vendor

New OEM Original Outright
Your price:
$67.99 each
Ready to ship
Asset Information
Are you an existing customer? Sign in to access your account.
ADD TO LIST
Technical Specs
P/N: CHK SST 410-4M4F-F Key Specs
Item
PISTON SPRING CHECK VALVE, PISTON, INLINE VALVE BODY, 1/4 IN PIPE SIZE, MNPT X FNPT
OEM
Approved Vendor
OEM #
CHK SST 410-4M4F-F
Condition
New OEM Original
Returnable
No
Warranty
Mfr Warranty
3-A Compliance
Not Rated
Body Material
Stainless Steel
Check Mechanism
Piston
Connection Gender - Side 1
Male
Connection Gender - Side 2
Female
Connection Size - Side 1
1/4 in
Connection Size - Side 2
1/4 in
Connection Type
MNPT x FNPT
Connection Type - Side 1
NPT
Connection Type - Side 2
NPT
Country of Origin
USA
Cracking Pressure
1 psi
Flow Coefficient (Cv)
0.6
For Media
Air, Fluids
Height - Cap to Inlet Center
9 in
Hex Size
3/4 in
Max. Pressure (CWP)
500 psi
Max. Pressure (Steam)
Not Rated
Media Temp. Range
-20 °F to 180 °F
Mounting Orientation
Horizontal , Vertical
Operating Temperature - Maximum
180 °F
Operating Temperature - Minimum
-20 °F
Overall Length
1.38 in
Pipe Size
1/4 in
Piston Material
Stainless Steel
Seal Material
FKM
Seat Material
Stainless Steel
Silent Check
Standard
Standards
UL, UR
Vacuum Service Rating
Not Rated
Valve Body Style
Inline
Valve Series
410
