OEM#: CHK BRS 410-4F4M-FNew OEM Original Outright

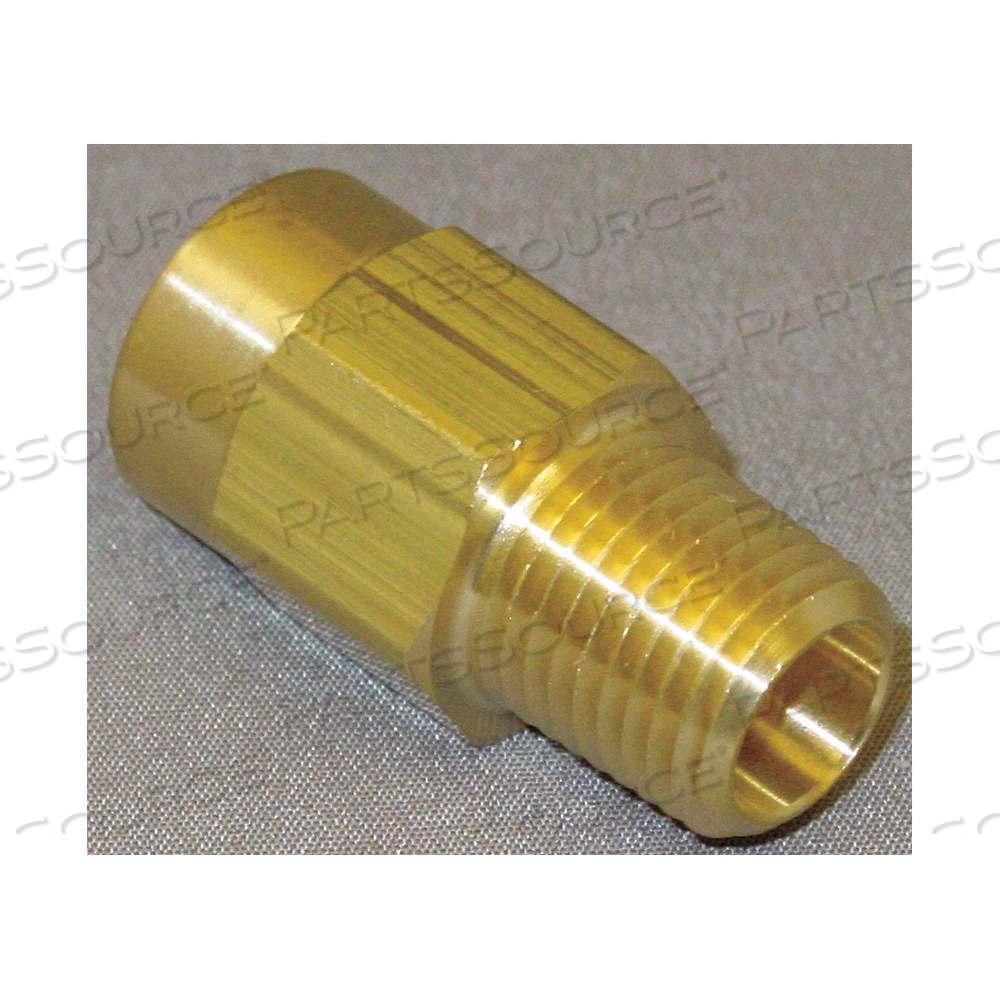

PISTON SPRING CHECK VALVE, PISTON, INLINE VALVE BODY, 1/4 IN PIPE SIZE, FNPT X MNPT by Approved Vendor

Your price:
$40.35 eachReady to ship
HomeApproved VendorGRACHKBRS4104F4MF
PISTON SPRING CHECK VALVE, PISTON, INLINE VALVE BODY, 1/4 IN PIPE SIZE, FNPT X MNPT by Approved Vendor
PISTON SPRING CHECK VALVE, PISTON, INLINE VALVE BODY, 1/4 IN PIPE SIZE, FNPT X MNPT by Approved Vendor

OEM#: CHK BRS 410-4F4M-F
PISTON SPRING CHECK VALVE, PISTON, INLINE VALVE BODY, 1/4 IN PIPE SIZE, FNPT X MNPT by Approved Vendor

New OEM Original Outright
Your price:
$40.35 each
Ready to ship
Asset Information
Are you an existing customer? Sign in to access your account.
ADD TO LIST
Technical Specs
P/N: CHK BRS 410-4F4M-F Key Specs
Item
PISTON SPRING CHECK VALVE, PISTON, INLINE VALVE BODY, 1/4 IN PIPE SIZE, FNPT X MNPT
OEM
Approved Vendor
OEM #
CHK BRS 410-4F4M-F
Condition
New OEM Original
Returnable
No
Warranty
Mfr Warranty
3-A Compliance
Not Rated
Body Material
Brass
Check Mechanism
Piston
Connection Gender - Side 1
Female
Connection Gender - Side 2
Male
Connection Size - Side 1
1/4 in
Connection Size - Side 2
1/4 in
Connection Type
FNPT x MNPT
Connection Type - Side 1
NPT
Connection Type - Side 2
NPT
Country of Origin
USA
Cracking Pressure
1 psi
Flow Coefficient (Cv)
0.6
For Media
Air, Fluids
Height - Cap to Inlet Center
5-1/2 in
Hex Size
5/8 in
Max. Pressure (CWP)
500 psi
Max. Pressure (Steam)
Not Rated
Media Temp. Range
-20 °F to 180 °F
Mounting Orientation
Horizontal , Vertical
Operating Temperature - Maximum
180 °F
Operating Temperature - Minimum
-20 °F
Overall Length
1.63 in
Pipe Size
1/4 in
Piston Material
Brass
Seal Material
FKM
Seat Material
Brass
Silent Check
Standard
Standards
UL, UR
Vacuum Service Rating
Not Rated
Valve Body Style
Inline
Valve Series
410
