OEM#: 4351004780New OEM Original Outright

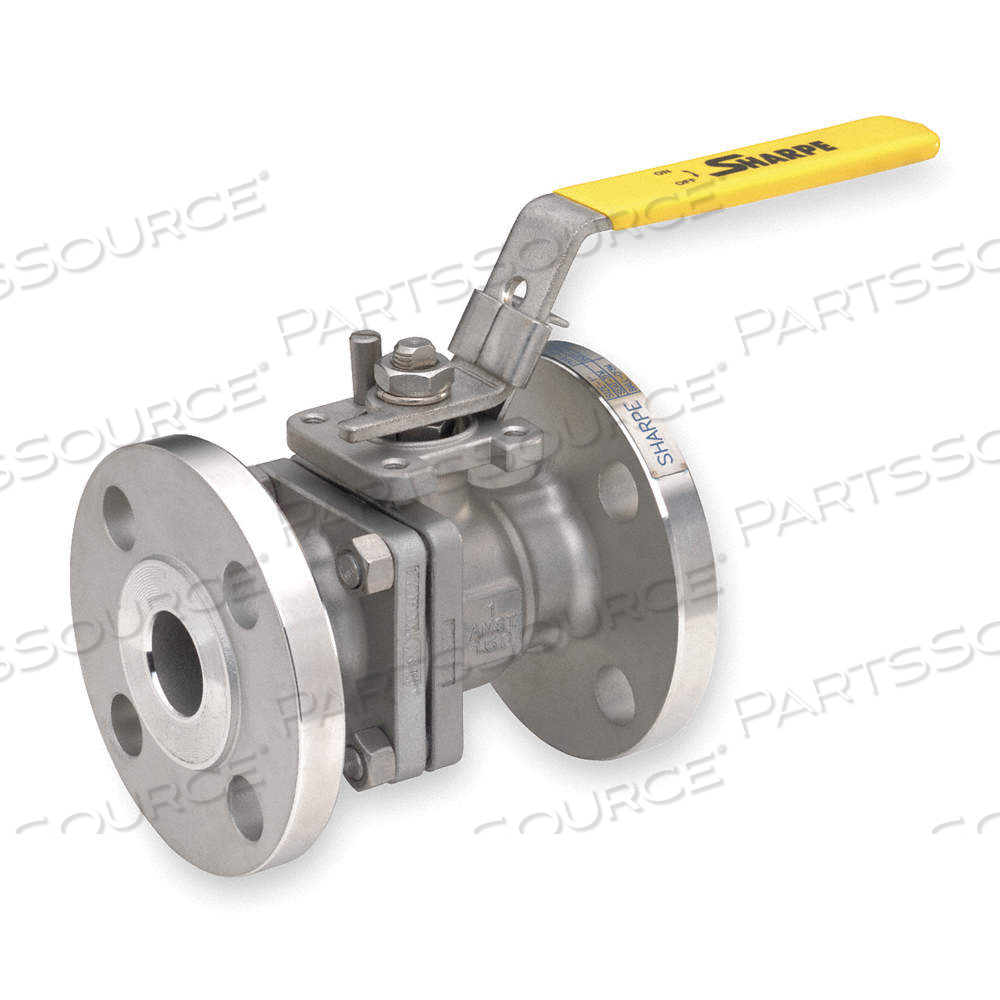

SHARPE VALVES MANUAL TWO-WAY BALL VALVE, 4 IN, 316 STAINLESS STEEL, STRAIGHT VALVE BODY, TWO-PIECE by Approved Vendor

Your price:
$2,686.03 eachReady to ship
HomeApproved VendorGRA4351004780
SHARPE VALVES MANUAL TWO-WAY BALL VALVE, 4 IN, 316 STAINLESS STEEL, STRAIGHT VALVE BODY, TWO-PIECE by Approved Vendor
SHARPE VALVES MANUAL TWO-WAY BALL VALVE, 4 IN, 316 STAINLESS STEEL, STRAIGHT VALVE BODY, TWO-PIECE by Approved Vendor

OEM#: 4351004780
SHARPE VALVES MANUAL TWO-WAY BALL VALVE, 4 IN, 316 STAINLESS STEEL, STRAIGHT VALVE BODY, TWO-PIECE by Approved Vendor

New OEM Original Outright
Your price:
$2,686.03 each
Ready to ship
Asset Information
Are you an existing customer? Sign in to access your account.
ADD TO LIST
Technical Specs
P/N: 4351004780 Key Specs
Item
SHARPE VALVES MANUAL TWO-WAY BALL VALVE, 4 IN, 316 STAINLESS STEEL, STRAIGHT VALVE BODY, TWO-PIECE
OEM
Approved Vendor
OEM #
4351004780
Condition
New OEM Original
Returnable
No
Warranty
Mfr Warranty
3-A Compliance
Not Rated
ANSI Flange Class
Class 150
Ball Material
316 Stainless Steel
Ball Port Style
Full Port
Body Material
316 Stainless Steel
Coefficient of Volume (Cv)
2,110
Connection Size - Side 1
4 in
Connection Size - Side 2
4 in
Connection Type - Side 1
Flange
Connection Type - Side 2
Flange
Country of Origin
Taiwan
For Media
Air, Corrosive Chemicals, Non-Potable Water, Steam
Handle
Locking Lever
Handle - Locking
Locking
Handle Color
Gray
Handle Length
13.75 in
Handle Material
Galvanized Steel
Handle Type
Lever
Included Mounting
ISO 5211 Actuator Mounting Pad
Max. Media Temperature
450 °F
Max. Pressure (CWP)
275 psi
Max. Pressure (Combustible Gas)
Not Rated
Max. Pressure (Steam)
190 psi
Media Temp. Range
0 °F to 450 °F
Min. Media Temperature
0 °F
Nominal Valve Size
4 in
Overall Length
9 in
Seal Material
PTFE
Seat Material
Polymer
Standards
API 598, ASME B16.34, NACE MR0175
Stem Material
316 Stainless Steel
Stem Type
Blowout Resistant
Vacuum Service Rating
29 in Hg
Valve Body Style
Straight
Valve Construction
Two-Piece
Valve Series
50
