OEM#: 0560009169New OEM Original Outright

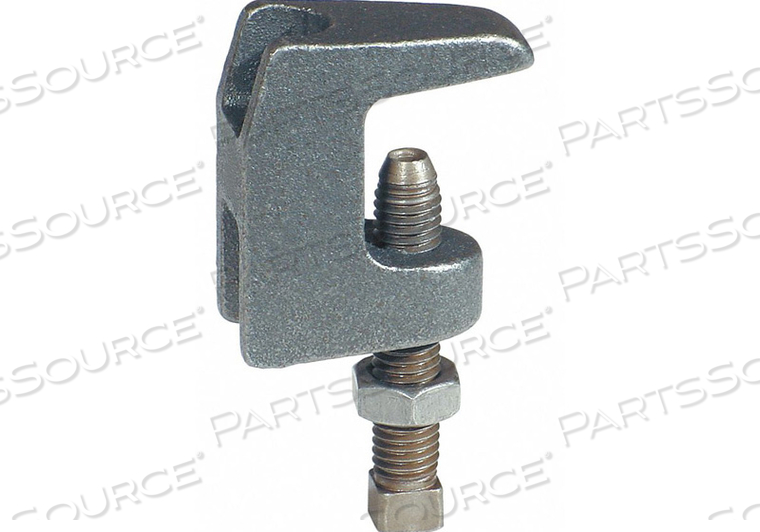

WIDE MOUTH BEAM CLAMP ROD SZ 3/8 IN by Anvil International
Your price:
$6.12 each
OEM#: 0560009169WIDE MOUTH BEAM CLAMP ROD SZ 3/8 IN by Anvil International
New OEM Original Outright
Your price:
$6.12 each
Asset Information
Are you an existing customer? Sign in to access your account.
ADD TO LIST
Technical Specs
P/N: 0560009169 Key Specs
Item
WIDE MOUTH BEAM CLAMP ROD SZ 3/8 IN
OEM
Anvil International
OEM #
0560009169
Condition
New OEM Original
Returnable
No
Warranty
Mfr Warranty
Country of Origin
China
Description/Special Features
For Use Under Roof Installations With Bar Joist Type Construction Or For Attachment To The Top Or Bottom Flange Of Structural Shapes Where The Vertical Hanger Rod Is Required To Be Offset From The Edge Of The Flange And Where The Thickness Of Joist O
Includes
Set Screw And Locknut
Length (Inches)
1-3/4 in
Material
Ductile Iron
Max Load (Pounds)
250 at Bottom, 500 at Top
Metal Detectable
Yes
Rod Size
3/8 in
Standards
A-A-1192A (Type 19 & 23), and ANSI/MSS SP-58 (Type 19 & 23). UL, ANSI/MSS SP-69, ULC Listed and FM Approved., WW-H-171-E (Type 23)
Type
C-Type
