OEM#: 0500009170New OEM Original Outright

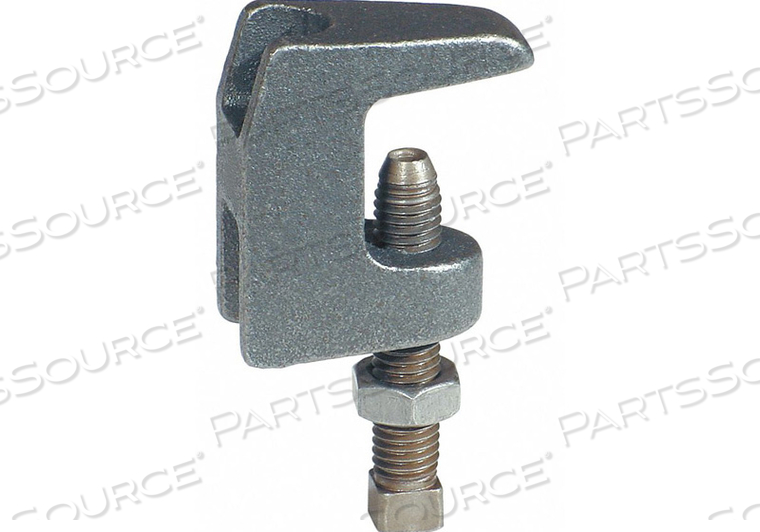

WIDE MOUTH BEAM CLAMP ROD SZ 1/2 IN by Anvil International
Your price:
$9.76 each
OEM#: 0500009170WIDE MOUTH BEAM CLAMP ROD SZ 1/2 IN by Anvil International
New OEM Original Outright
Your price:
$9.76 each
Asset Information
Are you an existing customer? Sign in to access your account.
ADD TO LIST
Technical Specs
P/N: 0500009170 Key Specs
Item
WIDE MOUTH BEAM CLAMP ROD SZ 1/2 IN
OEM
Anvil International
OEM #
0500009170
Condition
New OEM Original
Returnable
No
Warranty
Mfr Warranty
Country of Origin
USA
Description/Special Features
For Use Under Roof Install w/Bar Joist Type Const Or For Attach To The Top Or Bottom Flange Of Structural Shapes. Where The Vertical Hanger Rod Is Required To Be Offset From The Edge Of The Flange. The Thickness Of Joist Or Flange Does Not Exceed 1 1
Finish
Plain
Includes
Set Screw And Locknut
Length (Inches)
1-3/4 in
Material
Ductile Iron
Max Load (Pounds)
760 at Bottom, 950 at Top
Metal Detectable
Yes
Rod Size
1/2 in
Standards
and ANSI/ MSS SP-58 (Type 19 & 23). UL, ANSI/MSS SP-69, Federal Specification A-A-1192A (Type 19 & 23), ULC Listed and FM Approved., WW-H-171-E (Type 23)
Type
C-Type
