OEM#: BRV-824-1/2-3-TEFCNew OEM Original Outright

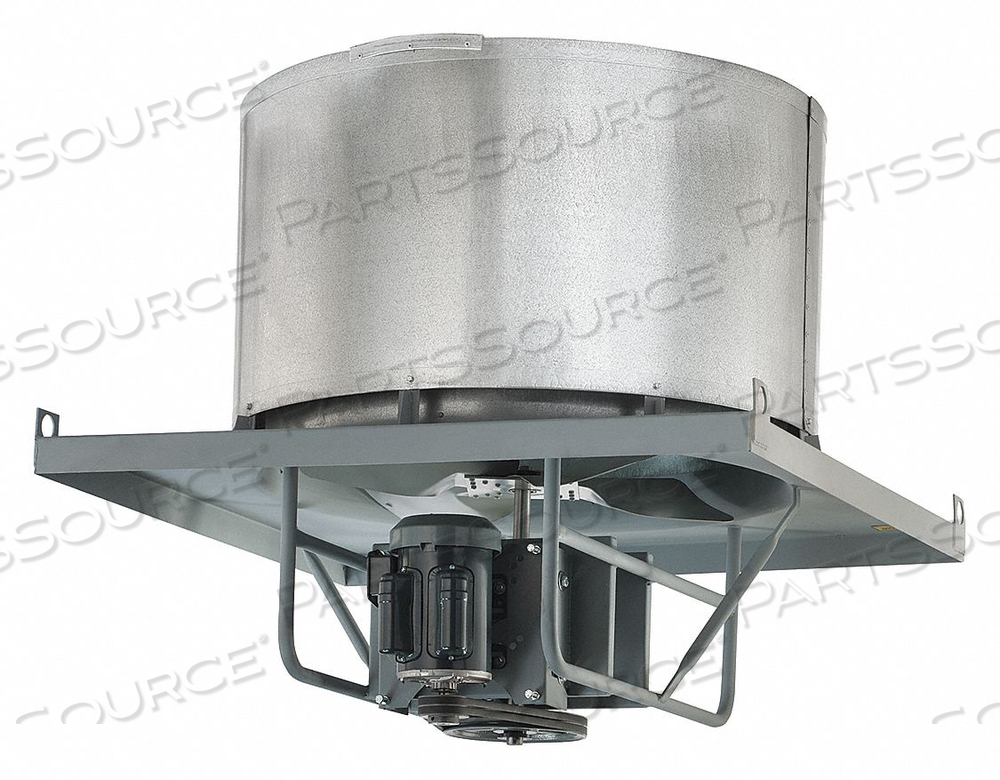

STEEL 24 DIA 39 L 42 H ROOF FAN W.MOTOR by Americraft Fan
Your price:
$3,472.12 each
OEM#: BRV-824-1/2-3-TEFCSTEEL 24 DIA 39 L 42 H ROOF FAN W.MOTOR by Americraft Fan
New OEM Original Outright
Your price:
$3,472.12 each
Asset Information
Are you an existing customer? Sign in to access your account.
ADD TO LIST
Technical Specs
P/N: BRV-824-1/2-3-TEFC Key Specs
Item
STEEL 24 DIA 39 L 42 H ROOF FAN W.MOTOR
OEM
Americraft Fan
OEM #
BRV-824-1/2-3-TEFC
Condition
New OEM Original
Returnable
No
Warranty
Mfr Warranty
Assembly
Assembled
Base Height (in)
41.25 in
Base Size - Roof Ventilators
39 in x 39 in
Bearing Type
Pillow Block
Blade Diameter
24 in
CFM @ 0.000 in SP
6219
CFM @ 0.125 in SP
5716
CFM @ 0.250 in SP
5661
CFM @ 0.375 in SP
4043
CFM @ 0.500 in SP
2600
CFM Range
6219-4043
Country of Origin
USA
Drive Package with Motor Included
Yes
Drive Type - Roof Ventilators
Belt Drive
Fan RPM
980
Housing Material
Heavy Gauge Steel
Item Type
Exhaust Ventilator
Maximum BHP
0.39 hp
Maximum Inlet Temperature (°F)
70 Degrees F
Maximum Operating Amps
1
Motor Horsepower
0.5 hp
Motor Horsepower Range
0.5 hp
Motor Hz
60
Mounting Location
Roof
Overall Diameter (in)
24 in
Overall Height (in)
41.25 in
Phase
3
Propeller Material
Steel
RPM Range
980
Shaft Diameter (Propeller End) (in)
0.625 in
Shaft Diameter (Sheave End) (in)
0.625 in
Sones @ 0.125 in SP @ 5 ft
14
Sones @ 0.250 in SP @ 5 ft
14
Speed Control
No
Speed Controllable
No
Voltage - Roof Ventilators
230V AC/460V AC
