OEM#: 130001New OEM Original Outright

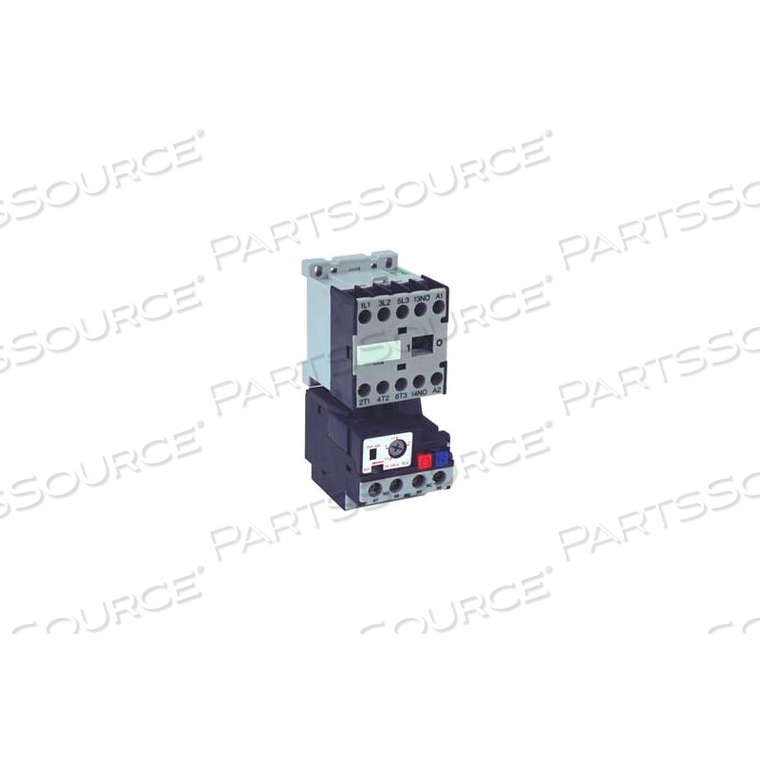

C06.310 9-AMP MINI CONTACTOR - 120V COIL by Advance Controls, Inc.

Your price:
$63.52 eachReady to ship
HomeAdvance Controls, Inc.130001
C06.310 9-AMP MINI CONTACTOR - 120V COIL by Advance Controls, Inc.
C06.310 9-AMP MINI CONTACTOR - 120V COIL by Advance Controls, Inc.

OEM#: 130001
C06.310 9-AMP MINI CONTACTOR - 120V COIL by Advance Controls, Inc.

New OEM Original Outright
Your price:
$63.52 each
Ready to ship
Asset Information

Must purchase minimum of 2

Are you an existing customer? Sign in to access your account.
ADD TO LIST
Product Overview
C06.310 9-Amp Mini Contactor - 120V Coil

  • Modern IEC Design For Long Life
  • Straight Through Wiring
  • Wide Ambient Temperature Operating Range
  • Arc Chute Design Increases Contact Life
  • Oversize 90% Silver, 10% Cadmium Oxide Contacts
  • Electrical Life - 1 Million Plus Operations
  • Mechanical Life - 10 To 20 Million Plus Operations
  • Optional Coil Driver Allows Operation On DC Control Circuits
  • Complete Line Of Accessories
  • Worldwide Approvals
Technical Specs
P/N: 130001 Key Specs
Item
C06.310 9-AMP MINI CONTACTOR - 120V COIL
OEM
Advance Controls, Inc.
OEM #
130001
Condition
New OEM Original
Returnable
No
Warranty
Mfr Warranty
Auxiliary Contacts
1 - NO
Certifications
UL 508 Listed, cUL, CE
Coil Voltage
120 VAC
Color
Light Gray
Construction
PA66
Country of Origin
China
Depth Inches
54mm
Gp Amps
16
Height Inches
58mm
Hertz
50/60
Hp Rating At 1 Phase 120 Volts
.5 HP
Hp Rating At 1 Phase 230 Volts
1.5 HP
Hp Rating At 3 Phase 200/208 Volts
2 HP
Hp Rating At 3 Phase 230 Volts
3 HP
Hp Rating At 3 Phase 460 Volts
5 HP
Hp Rating At 3 Phase 575 Volts
5 HP
Inductive Amps
9
Interrupt Rating
5000 Amp
Max. Wire Size
10 AWG
Mounting
DIN Rail/Base
Voltage
600 VAC
Weight
.4 lbs
Width Inches
45mm
C06.310 9-Amp Mini Contactor - 120V Coil

  • Modern IEC Design For Long Life
  • Straight Through Wiring
  • Wide Ambient Temperature Operating Range
  • Arc Chute Design Increases Contact Life
  • Oversize 90% Silver, 10% Cadmium Oxide Contacts
  • Electrical Life - 1 Million Plus Operations
  • Mechanical Life - 10 To 20 Million Plus Operations
  • Optional Coil Driver Allows Operation On DC Control Circuits
  • Complete Line Of Accessories
  • Worldwide Approvals
