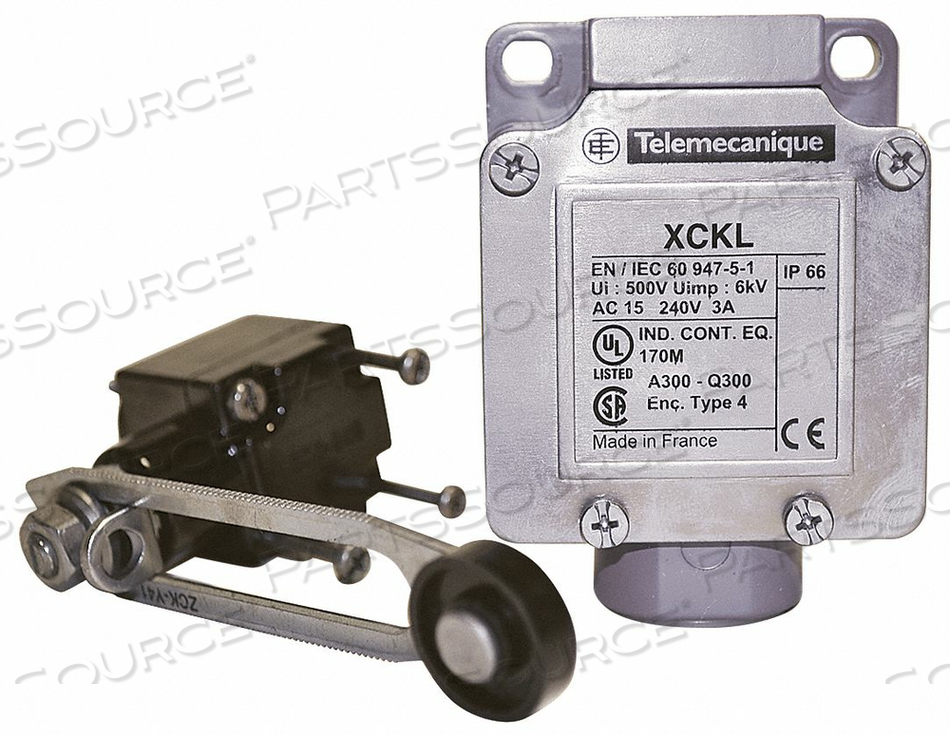

MINIATURE LIMIT SWITCH by Telemecanique Sensors
OEM#: XCKL141H7

New OEM Original Outright
MINIATURE LIMIT SWITCH by Telemecanique Sensors
MINIATURE LIMIT SWITCH by Telemecanique Sensors
Your price:
$240.34 / each
$243.16 Savings: $2.82 (1%)
Ship date will be provided after ordering
Asset Information

Estimated Ship Date is based on availability at time of order

Technical Specs

P/N: XCKL141H7 Key Specs

Item
MINIATURE LIMIT SWITCH
OEM
Telemecanique Sensors
OEM #
XCKL141H7
Condition
New OEM Original
Returnable
No
AC Contact Rating - Limit Switch
10A @ 240V
Actuator Length - Limit Switch
1.97 in to 4.11 in
Actuator Location - Limit Switch
Side
Actuator Style - Limit Switch
Roller Lever, Rotary
Arm Material
Zinc
Basic Actuator Style - Limit Switch
Rotary
Body Depth - Limit Switch
1.18 in
Body Height - Limit Switch
2.83 in
Body Material
Zinc
Body Style - Limit Switch
Miniature
Body Width - Limit Switch
2.04 in
Boot Sealed Actuator - Limit Switch
No
Contact Form- Switches
1NC/1NO
DC Contact Rating - Limit Switch
10A @ 240V
Electrical Connection
Screw Terminals
IP Rating
66
Limit Switch Style
General Purpose Limit Switch
Mounting - Limit Switch
Surface
Mounting Hole - Limit Switch
(2) 0.2 in dia
Mounting Hole Pattern - Limit Switch
2 Hole Horizontal
Mounting Hole Spacing - Limit Switch
1.61 in
Movement
CCW, CW
NEMA Rating
1, 12, 2, 3, 4
Operating Force
0.89 in-lb
Operating Temperature Range
-13 Degrees to 158 Degrees F
Roller Diameter
0.75 in
Roller Material
Thermoplastic
Roller Width
0.24 in
Series
XCKL
Standards
CE, CSA, UL
Stem Thread - Limit Switch
No Stem
Travel
Total Travel 70 Degrees
Wiring Entry
1/2 in NPT
