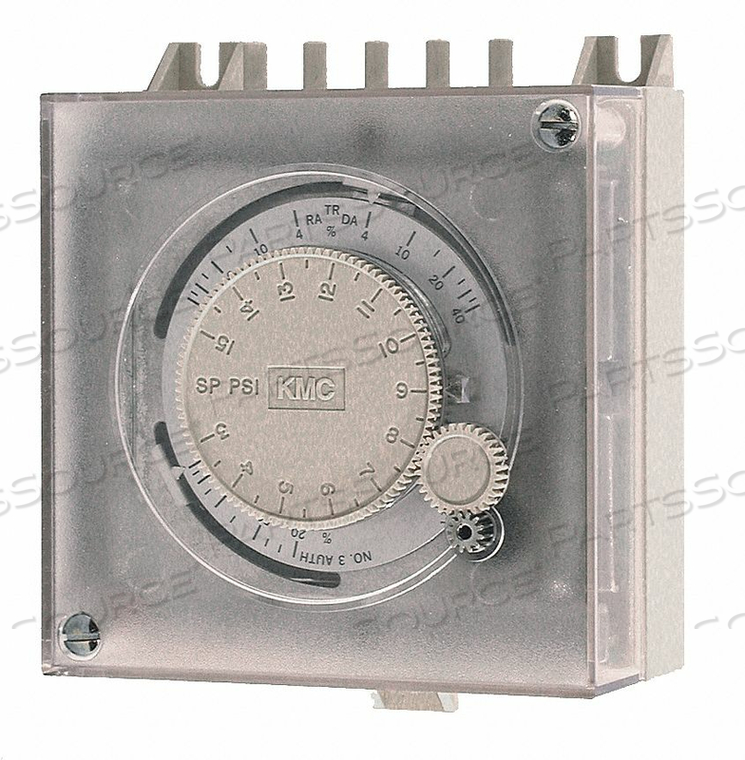

RECEIVER CONTROLLER DUAL INPUT by KMC Controls
OEM#: CCC-1002

New OEM Original Outright
RECEIVER CONTROLLER DUAL INPUT by KMC Controls
RECEIVER CONTROLLER DUAL INPUT by KMC Controls
Your price:
$356.57 / each
$360.76 Savings: $4.19 (1%)
Ship date will be provided after ordering
Asset Information

Estimated Ship Date is based on availability at time of order

Technical Specs

P/N: CCC-1002 Key Specs

Item
RECEIVER CONTROLLER DUAL INPUT
OEM
KMC Controls
OEM #
CCC-1002
Condition
New OEM Original
Returnable
No
Air Consumption
20 SCIM
Air Input Range (PSI)
3 to 30
Application
Designed To Control Valves And Actuators In Hvac Systems, Designed To Work With Pressure Switches, Including Low Limit Applications, Receiver Gauges, Relays And Temperature Transmitters
Authority
20 to 200 Percent Adjustable
Characteristics
Dir/Rev Acting, Remote SP Input, ABS UL 94HB Plastic Construction
Control Type
Field Selectable
Depth (Inches)
2-5/16 in
Gauge
Optional
Height (Inches)
5-1/4 in
Includes
3/16 in (5 Mm) Nipples For 1/4 in (6 Mm) OD Polyethylene Tubing
Operating Temperature Range (F)
40 to 120
Output
3 to 15 psig
Pressure (PSI)
3 to 15
Product Description
Proportional Control Device. Use With Pneumatic Transmitters Or Other 3 To 15 Psig Pneumatic Devices, For Controlling Valves And Actuators In Hvac Systems
Reset Capability
Yes
Type
Dual Input w/Remote Set Point Adjustment, High Main Valve Capacity
Width (Inches)
4-3/8 in
